Bucket Elevator Manufacturer
Lift bulk material vertically with consistent, reliable throughput — belt or chain-driven, built for your capacity and lift height.
- Custom Engineered
- Quality-Driven Engineering
- In-House Manufacturing
Bucket Elevator
Overview

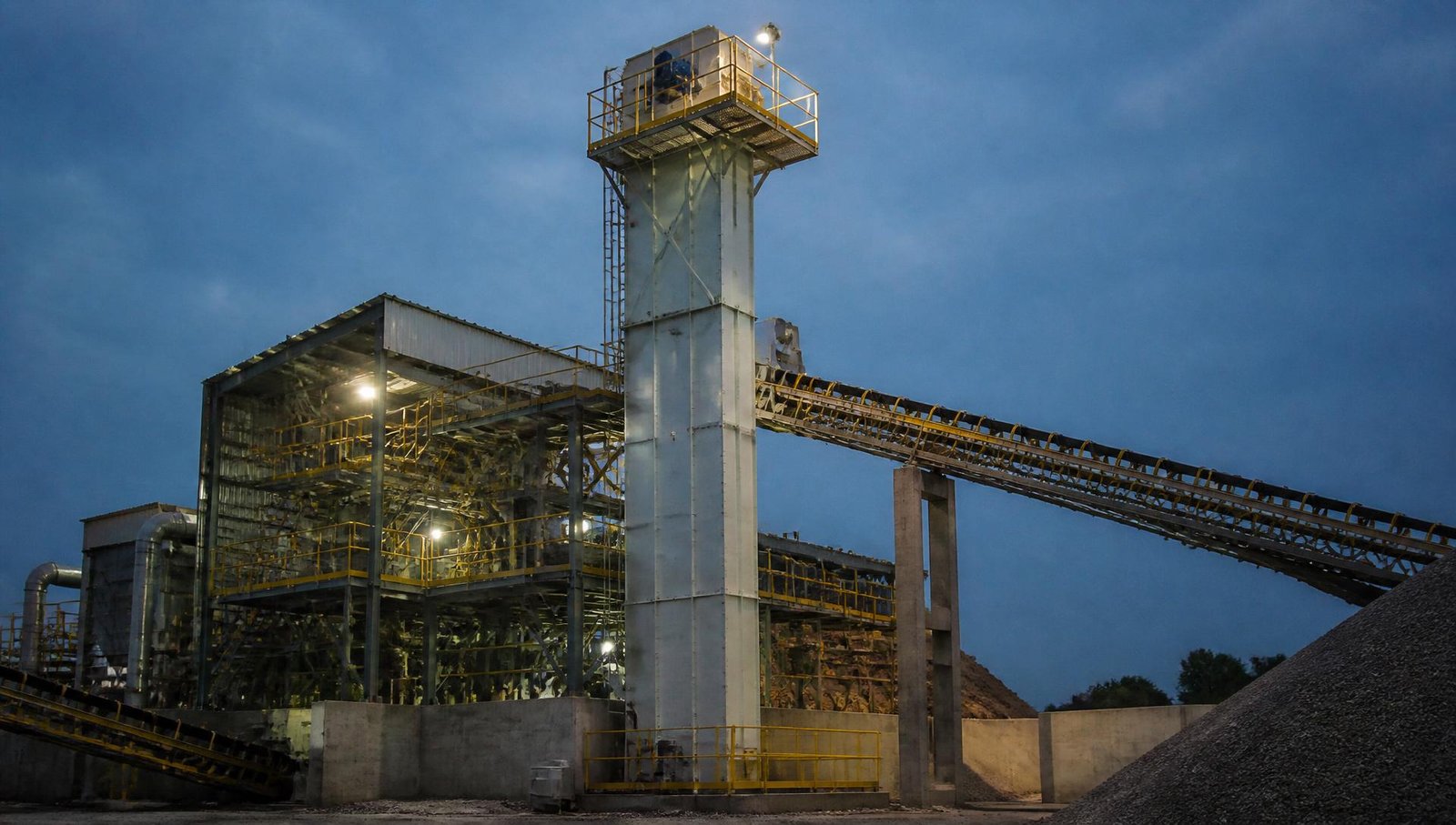

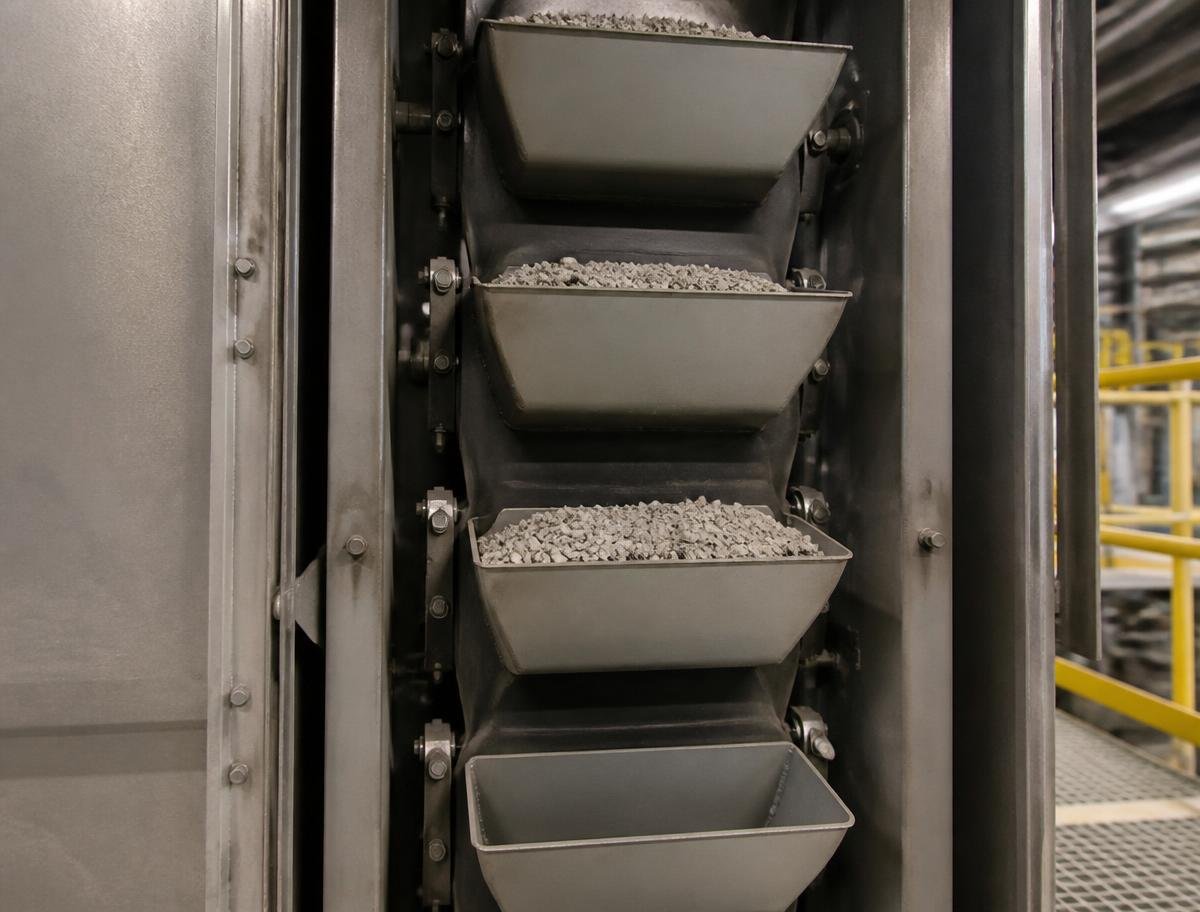

Our bucket elevators are engineered for reliable vertical transfer of bulk material, with capacities from 5 to 100 TPH and lift heights up to 40 meters. Bucket type, spacing, and drive configuration are selected to match your material characteristics and throughput requirement.
Each elevator is fabricated, assembled, and trial-run at our facility before dispatch, so it is ready for dependable operation from day one.
Engineering
Capability Highlights
- Belt or chain drive selected based on material weight and required lift height
- Centrifugal or continuous discharge configuration to suit free-flowing or sluggish materials
- Built-in safety features — belt misalignment detection, zero-speed switch, and backstop — to protect against unplanned stoppages
- Heavy-duty fabricated head and boot sections for long service life under continuous duty
- VFD control available for smoother start-up and reduced mechanical stress
- Bucket material selected to match the abrasiveness and characteristics of your material
- Every unit trial-run under load before dispatch
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 5–100 TPH |
| Lift Height Range | 5–40 Meter |
| Bucket Type | HDPE / Nylon / SS / MS |
| Bucket Capacity | 2–50 Litres |
| Casing Construction | Carbon Steel / SS304 / SS316 |
| Belt / Chain Type | Belt / Chain |
| Drive Type | Geared Motor |
| Bucket Spacing | As per Capacity & Material |
| Discharge Type | Centrifugal / Continuous |
| Head & Boot Construction | Heavy-Duty Fabricated |
| Safety Features | Belt Misalignment / Zero Speed / Backstop |
| Control | Local / PLC / VFD |
| Testing | No Load & Load Trial Run |
Need to Move Material Vertically?
Share your capacity and lift height, and we'll put together the right bucket elevator for your plant.
