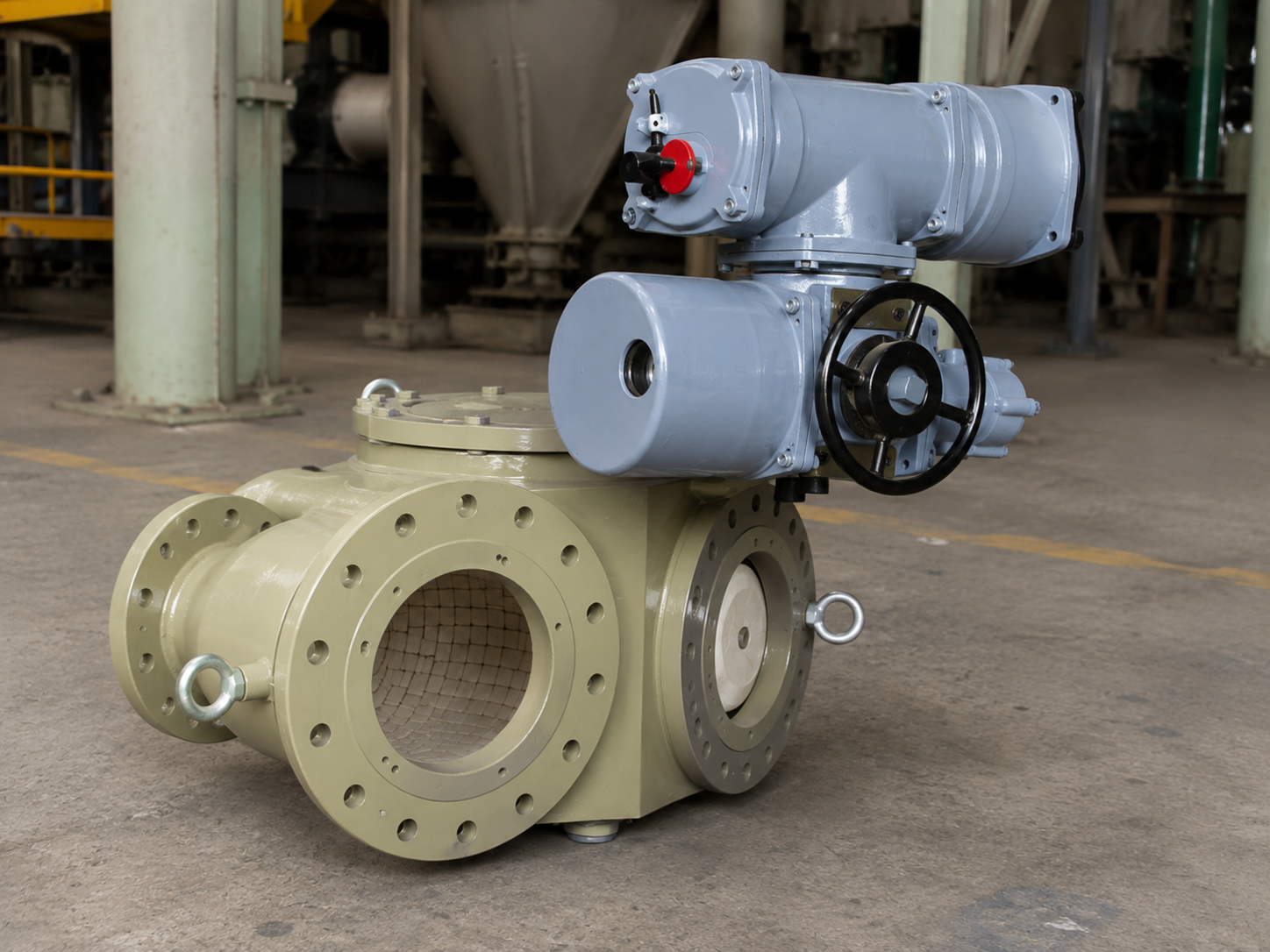

Diverter Valve Manufacturer — Wear Resistant Y-Type
Reliable wear-resistant diverter valves engineered to route abrasive bulk material between two conveying lines without compromise.
- Wear-Resistant Construction
- Quality-Driven Engineering
- In-House Manufacturing
Wear-Resistant Material Routing for Pneumatic Conveying

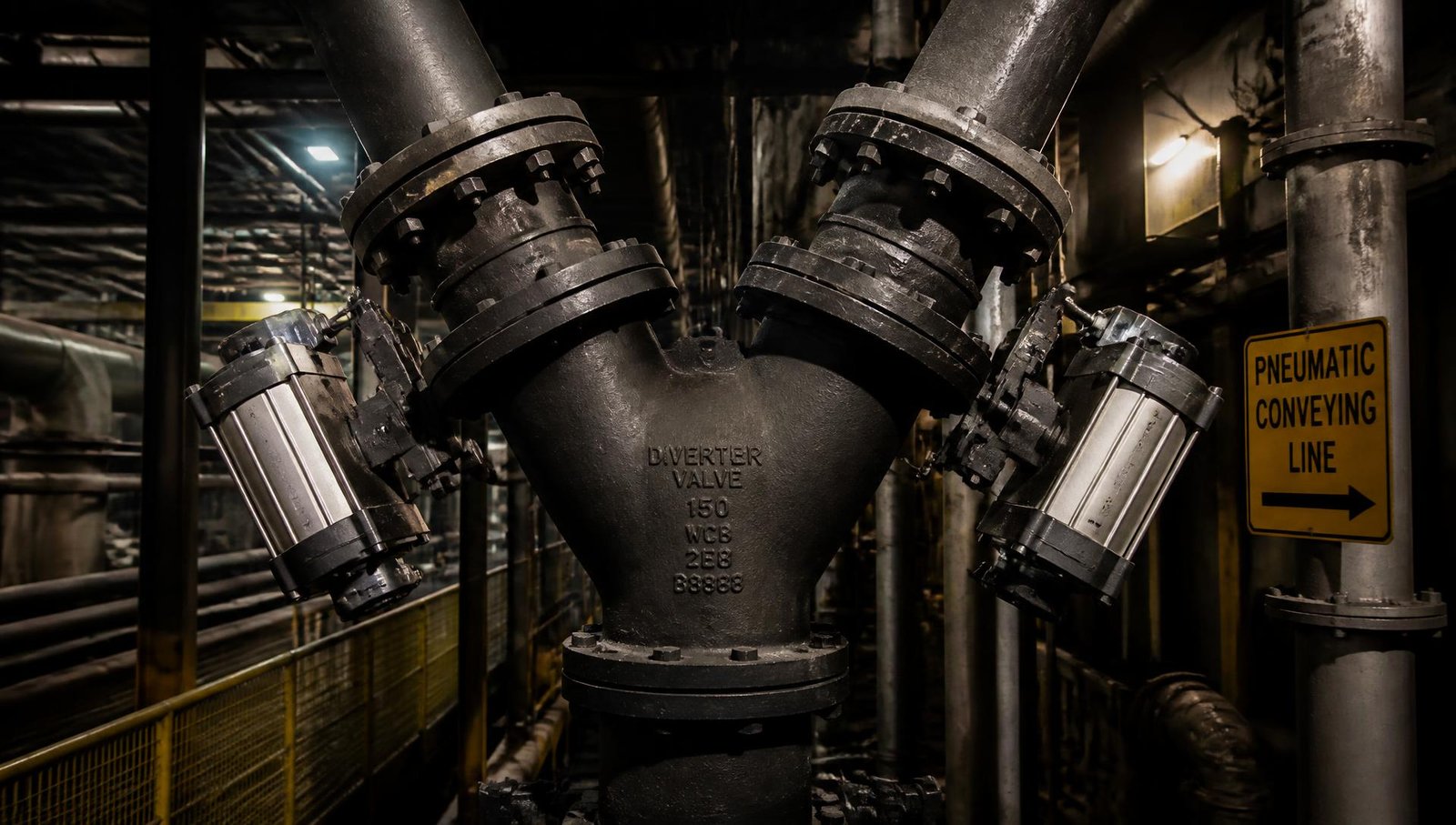

Our wear-resistant Y-type diverter valves are used in pneumatic conveying systems to divert powder and granular material—flowing in either dense phase or lean phase—into two separate pipelines.
Our wear-resistant construction is specifically designed for applications handling abrasive solids, common in mineral processing and mining operations — including systems built around our ball mills, classifiers, and rotary airlock valves.
We design and fabricate every valve in-house, allowing us to customize size, lining, and actuation to match your process requirements.
Application-Focused Configuration
Valve size, lining, and actuation can be configured according to pipeline and process requirements.
Engineering Highlights
- Cast iron body construction for strength and durability.
- Distribution achieved via a swivel throw-arm, driven by a rotary pneumatic or electrical actuator.
- Ceramic lining on the inside for extended wear life in abrasive applications.
- Sealing using silicon rubber mounted on the swivel throw-arm.
- Rated for demanding operating conditions.
- Minimum maintenance requirement, built for high durability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | Carbon Steel / Cast Steel |
| Lining | Abrasion-Resistant Ceramic / Ni-Hard / Hardfaced Lining |
| Actuator Type | Pneumatic Double-Acting Actuator |
| Max Working Temperature | 200°C |
| Max System Pressure | 10 bar(g) |
| Size Range | DN100-DN500 |
Configuration finalized based on application requirements.
Routing Material Through a Conveying Line?
Tell us your pipeline size, material, and pressure rating, and we'll point you to the right valve.
