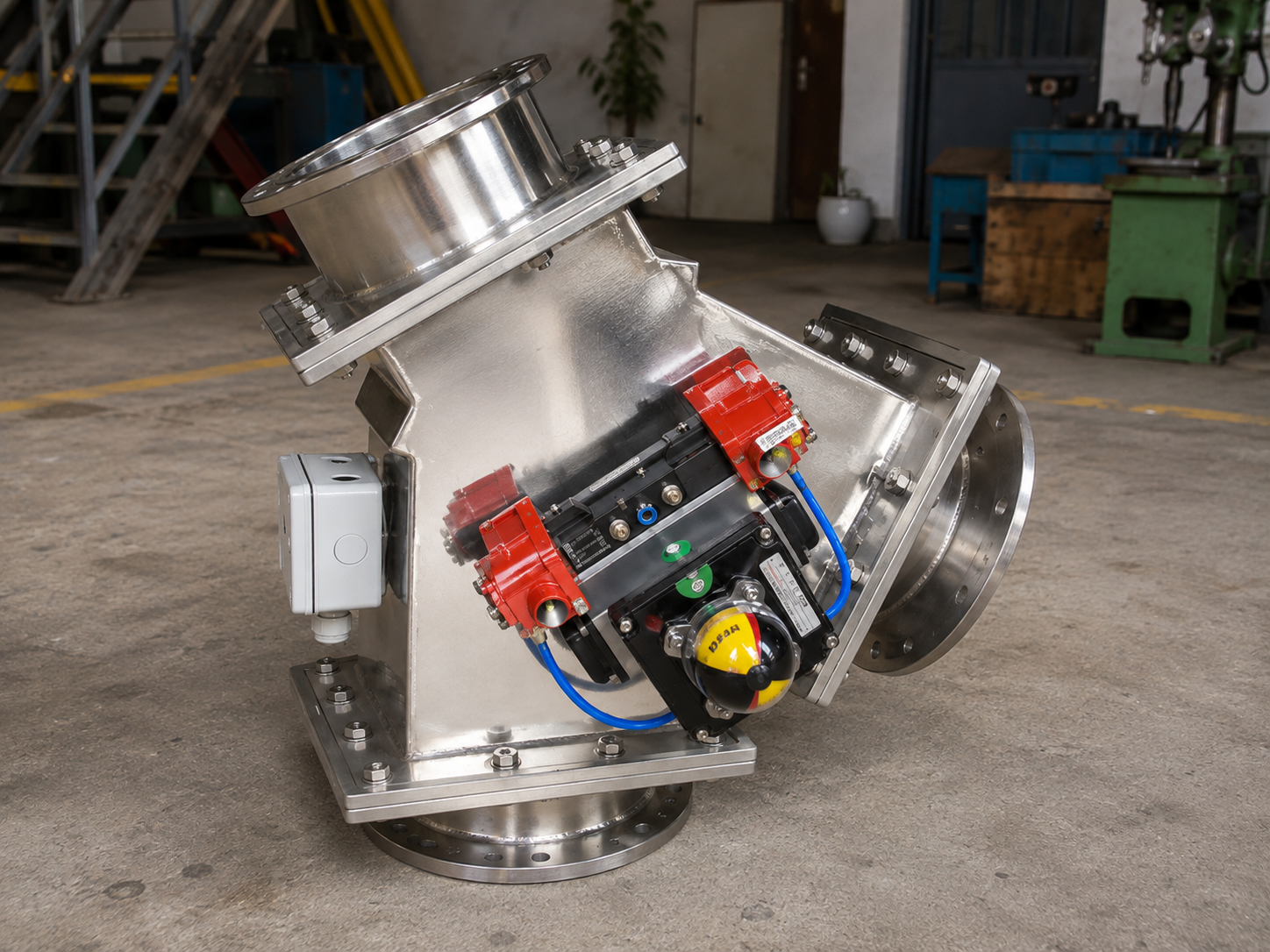

Gravity Diverter Valve Manufacturer — Flap Type
Reliable flap-type gravity diverter valves engineered for accurate dry powder dosing and discharge with minimum leakage.
- Custom Engineered
- Quality-Driven Engineering
- In-House Manufacturing
Reliable Dry Powder Flow Routing
Our flap-type gravity diverter valves are used in dry powder gravity-flow lines for dosing and discharge applications. Our valves feature a protected blade design that shields the leading edge from wear, minimizing material leakage and ensuring reliable, long-term performance.
We fabricate every valve so that the size, angle, and setup can be adjusted to fit your gravity-flow line. They integrate readily with the rest of our equipment range, including ball mills, classifiers, rotary airlock valves, and WR diverter valves.
Application-Based Configuration
Valve size, diverter angle, configuration, and actuation can be adjusted according to the gravity-flow line and process requirements.
Design Highlights
- Fabricated in Stainless Steel and Mild Steel construction.
- Square-to-round transitions available for flexible line integration.
- Multiple diverter angle options - 45°, 60°, and 90°.
- Available in 2-way and 3-way configurations.
- Single-acting or double-acting solenoid options.
- Powerful linear pneumatic cylinder for reliable operation.
- Pre-wired terminal box for simplified installation.
- Minimum maintenance requirement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Construction Material | Heavy-Duty Carbon Steel / Cast Steel |
| Size Range | 150-600 mm |
| Diverter Angle | 30°/45/°60°/90° |
| Configuration | 2-Way / 3-Way Diverter |
| Actuator | Pneumatic Operated Double-Acting Solenoid |
| Terminal Box | IP65, with Open/Close Limit Switches |
Configuration finalized based on application requirements.
Setting Up a Dry Powder Line?
Give us your line size, angle, and configuration preference, and we will recommend the right gravity diverter valve.
