Screw Conveyor Manufacturer
Move bulk material efficiently across your plant — solid flight, ribbon, or shaftless screw conveyors, built to your capacity and layout.
- Custom Engineered
- Quality-Driven Engineering
- In-House Manufacturing
Screw Conveyor
Overview

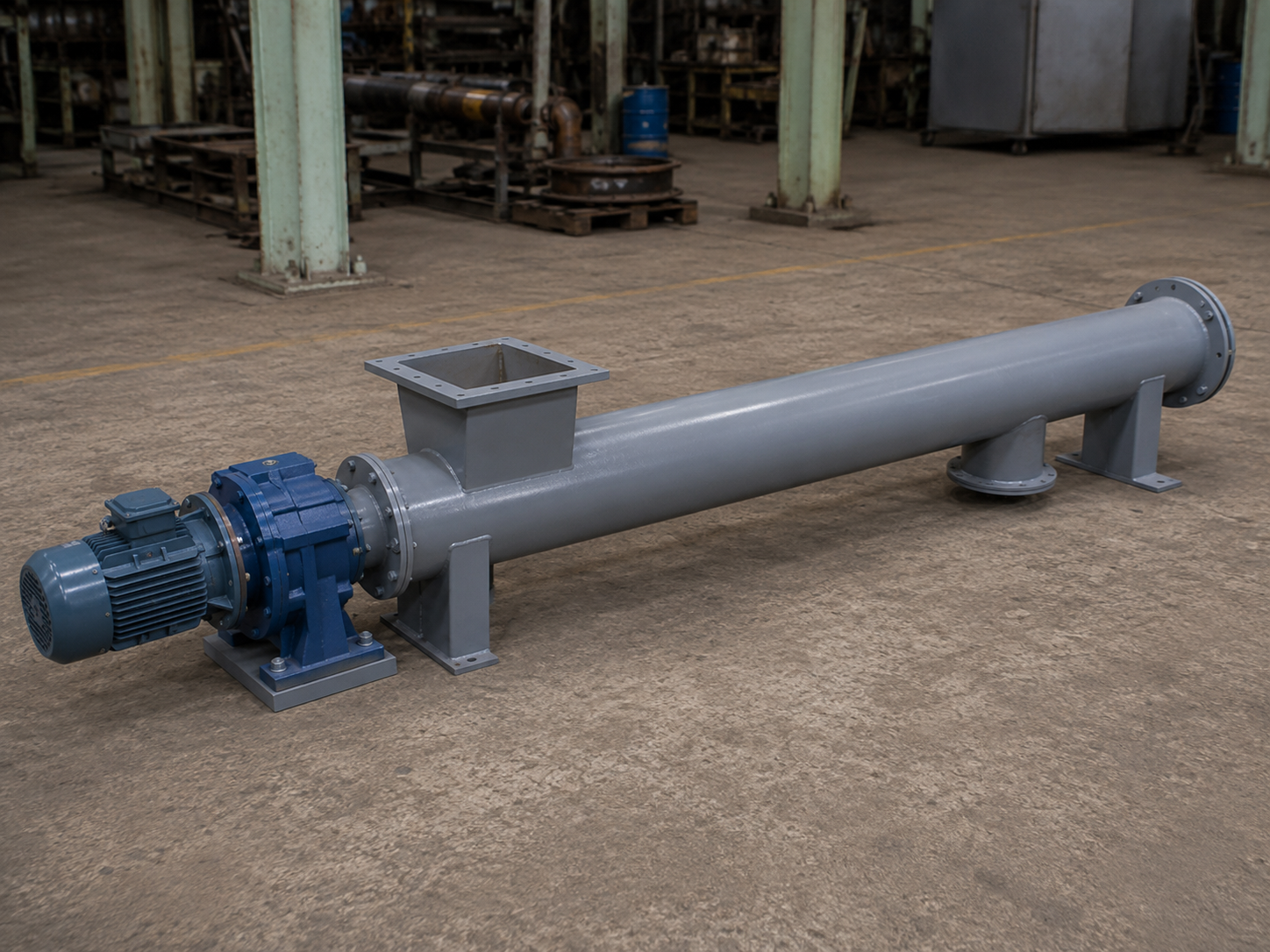

Our screw conveyors are built for efficient, continuous transfer of bulk material across your plant. With capacities ranging from 1 to 50 TPH, each unit is sized to your diameter, length, and layout requirement rather than a fixed specification.
Every conveyor is fabricated, assembled, and trial-run at our facility prior to dispatch, ensuring it performs as specified from the moment it is installed.
Engineering
Technical Highlights
- Available in solid flight, ribbon, or shaftless design — matched to your material's flow characteristics
- Wear-resistant flight material option for abrasive minerals and ores
- VFD control available for precise speed adjustment and reduced energy consumption
- Bearing type (pillow block or hanger) selected based on conveyor length and load
- Flanged connections for straightforward integration with existing pipelines or equipment
- Designed to minimize spillage and dust generation during transfer
- Every unit trial-run under load before dispatch, so performance is verified
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity Range | 1–50 TPH |
| Diameter Range | 150–600 mm |
| Length Range | 2–30 meter |
| Construction | Carbon Steel / SS304 / SS316 |
| Screw Type | Solid Flight / Ribbon / Shaftless |
| Drive Type | Geared Motor |
| Screw Speed | 20–100 RPM |
| Flight Material | MS / SS / Wear Resistant Steel |
| Inlet / Outlet | Flanged / Customized |
| Bearing Type | Pillow Block / Hanger Bearing |
| Control | Local / PLC / VFD |
| Testing | No Load & Load Trial Run |
Have a Material Transfer Requirement?
Tell us your capacity and layout, and we'll size the right screw conveyor for your plant.
