Pressure Vessel Manufacturer
Custom-engineered pressure vessels built to process safety standards for chemical, pharmaceutical, and industrial applications.
- Custom Engineered
- In-House Fabrication
- Quality Controlled Manufacturing

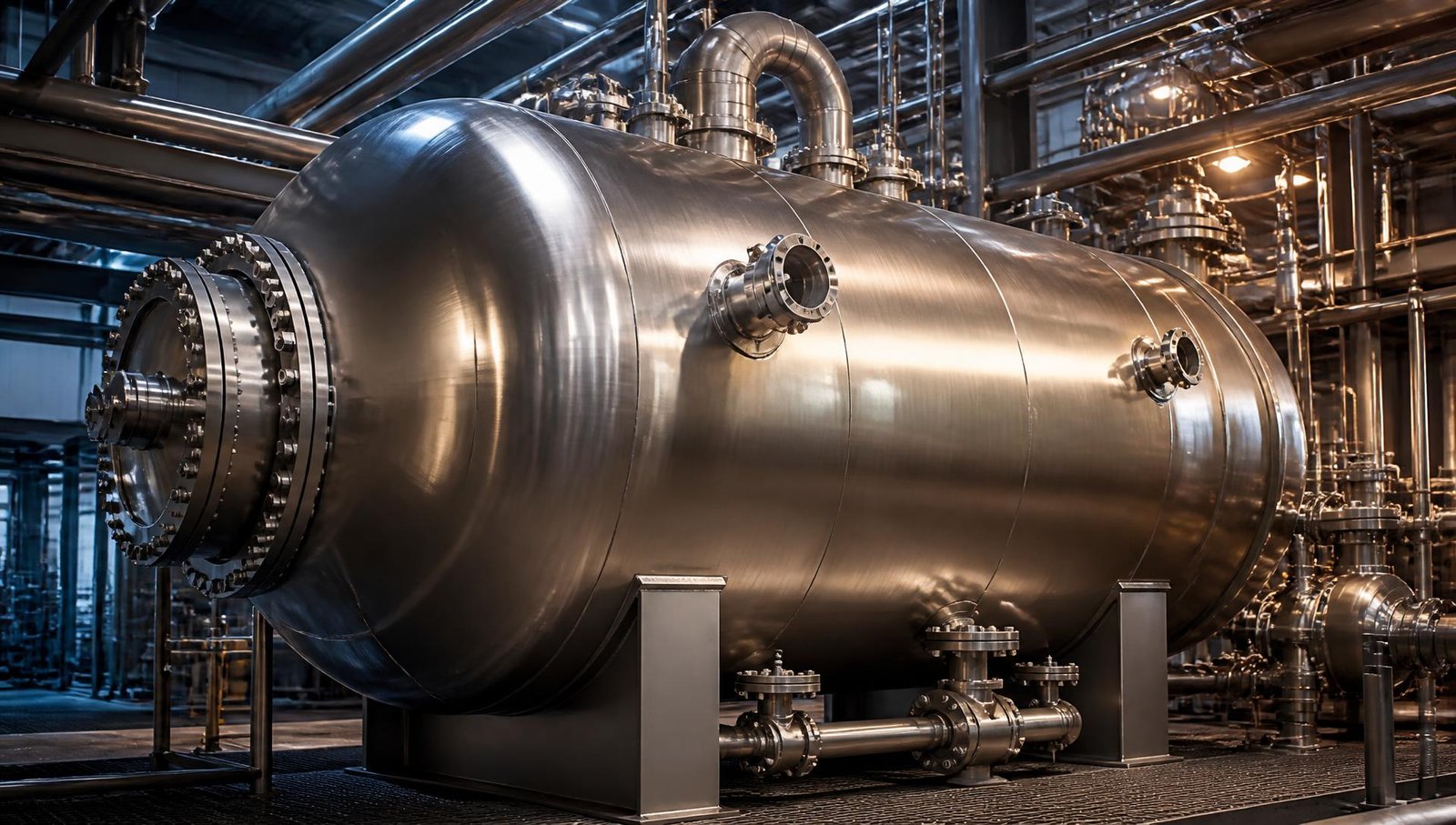

Pressure Vessel
Engineered for Safe and Reliable Process Operation
We build pressure vessels that process plants can depend on — safe, reliable, and consistent under pressure.
Every vessel is engineered to your specific process parameters — capacity, design pressure, temperature, and material of construction — and fabricated in-house under strict quality control. Pressure vessels sit alongside our reactors and storage tanks within our process equipment range.
We take care of design, fabrication, and testing ourselves, so nothing leaves our facility until it's fully checked. Explore our complete equipment range, including ball mills and classifiers.
Application-Specific Engineering
Each pressure vessel is configured according to the required capacity, design pressure, design temperature, material of construction, and vessel configuration.
Standards
Design & Quality Standards
Every pressure vessel we manufacture is designed and fabricated under ASME standard, with each unit undergoing hydrotesting before dispatch to ensure it meets required safety and performance parameters.
Hydrotesting Before Dispatch
Controlled Quality Process
Design
Design Features
Custom Pressure & Temperature Design
Engineered to your exact pressure, temperature, and volume specification.
MS & SS Construction
Available in Mild Steel and Stainless Steel construction, including SS 304 and SS 316 as applicable.

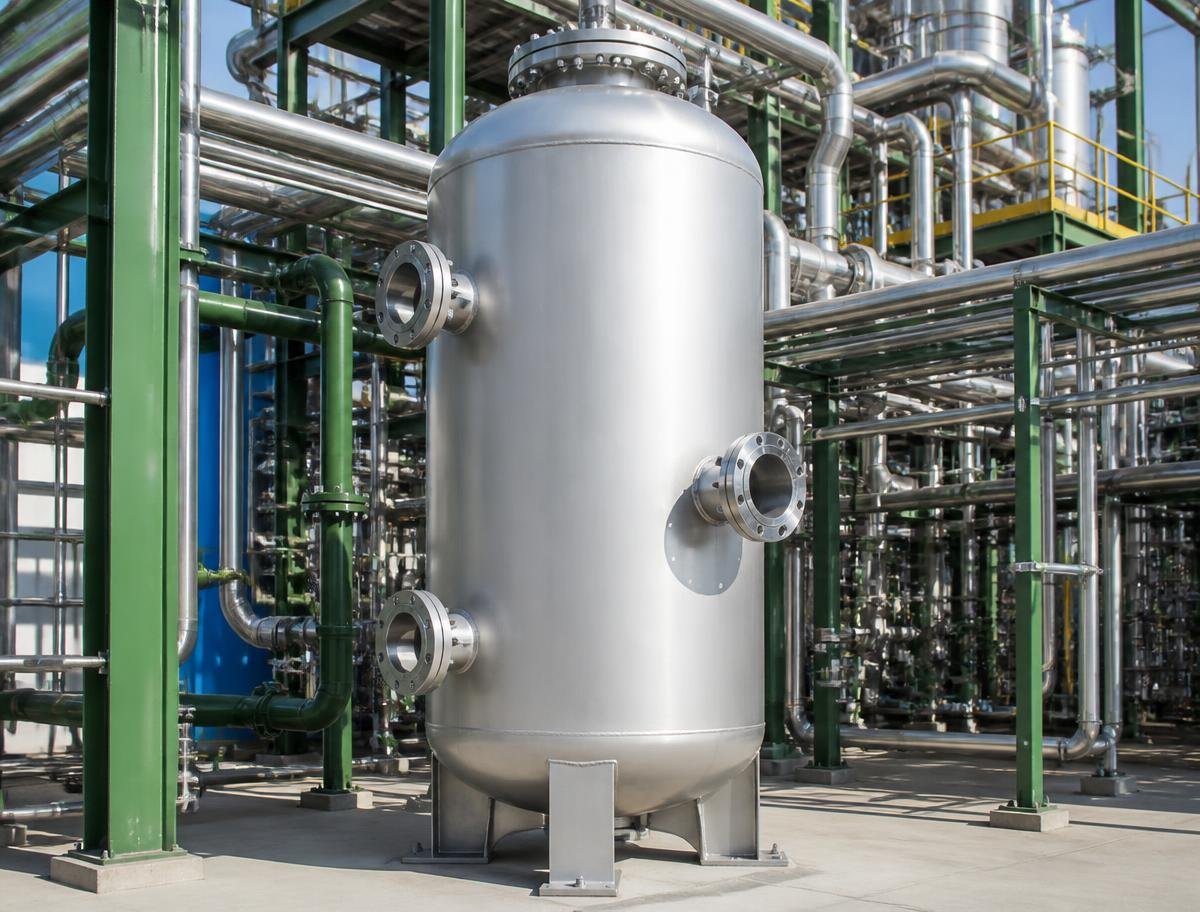

Horizontal & Vertical Configurations
Available in horizontal and vertical vessel configurations.
Jacketed & Agitated Options
Jacketed and agitated vessel options are available for suitable process applications.
Precision Welding & Fabrication
Precision welding and fabrication performed under a controlled quality process.
Hydrotested Before Dispatch
Every vessel is hydrotested prior to leaving the facility.
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Design Code | ASME Section VIII, Division 1 / IBR, as applicable |
| Capacity Range | 1-100 m³ |
| Design Pressure Range | 1.5-40 bar(g) |
| Design Temperature Range | -10° to +250 °C |
| Material of Construction | Carbon Steel / SS304 / SS316 |
| Configuration | Horizontal / Vertical |
| Jacketed Option | Available as per application |
| Agitated Option | Available as per application |
| Testing | Hydrostatic Testing as per applicable code |
Configuration finalized based on application and engineering requirements.
Have a Pressure Vessel Requirement?
Send us your capacity, design pressure, and material preference, and we will engineer the right vessel for your process.
