Jacketed Reactor
Jacketed configurations provide a controlled space around the vessel for circulating a heating or cooling medium according to the process requirements.
Suitable Heating / Cooling Media
- Steam
- Thermic Fluid
- Chilled Water
Reactor Manufacturer
Custom-engineered jacketed and limpet coil reactors built for precise, reliable chemical and process reactions.
- Custom Engineered
- In-House Fabrication
- Hydrotested Before Dispatch

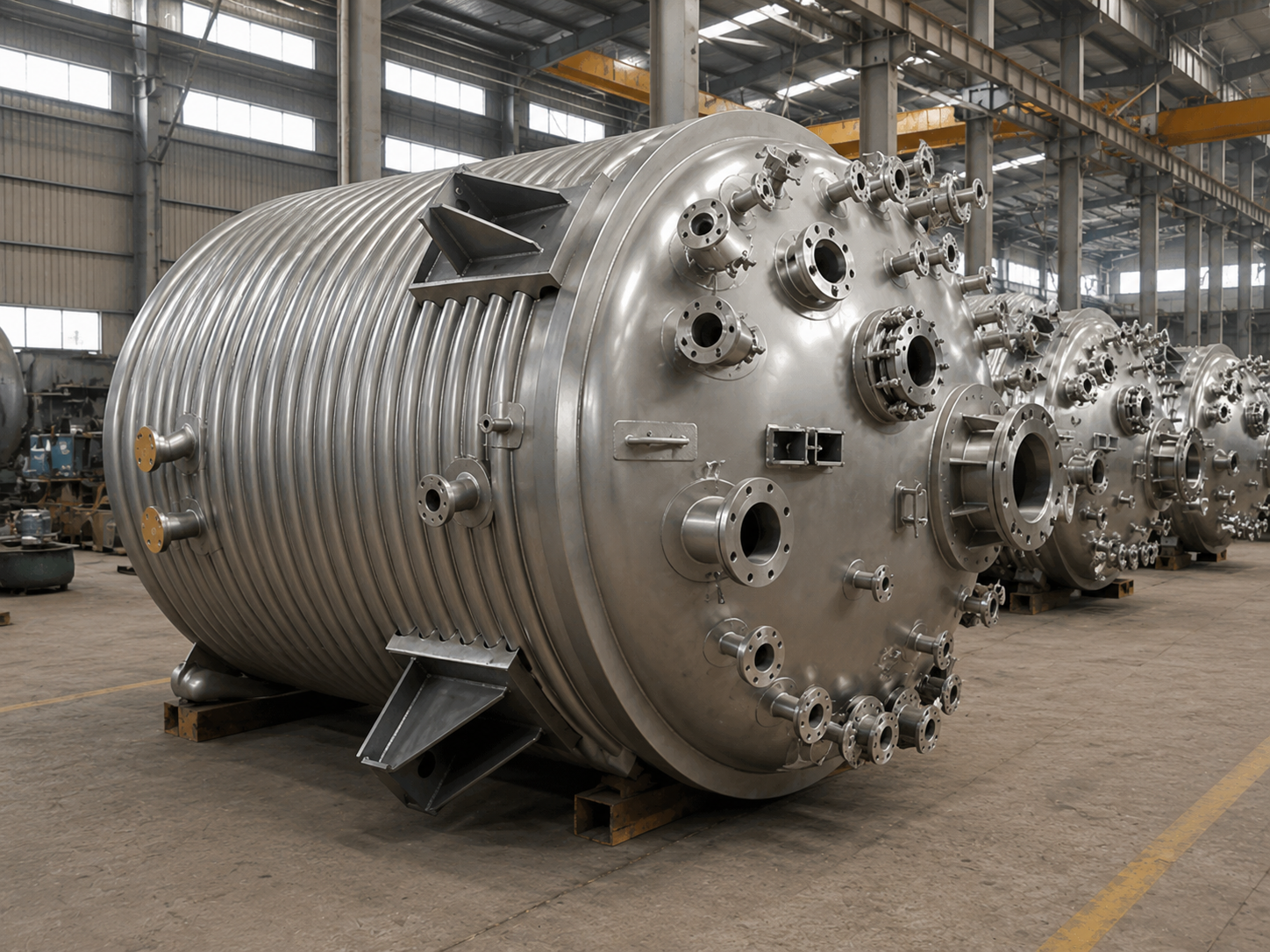

Reactor
Precision Temperature-Controlled Process Reaction
Our reactors give chemical, pharma, and food processing plants the temperature control they need for consistent results.
Every reactor is engineered to your process requirement — capacity, heating/cooling medium, agitation type, and material of construction. Reactors sit alongside our pressure vessels and storage tanks within our process equipment range.
Explore our complete equipment range, including ball mills and classifiers.
Process-Specific Engineering
Reactor configuration is developed according to the required capacity, operating conditions, heating/cooling requirements, agitation system, and material of construction.
Configuration
Jacketed & Limpet Coil Reactor Options

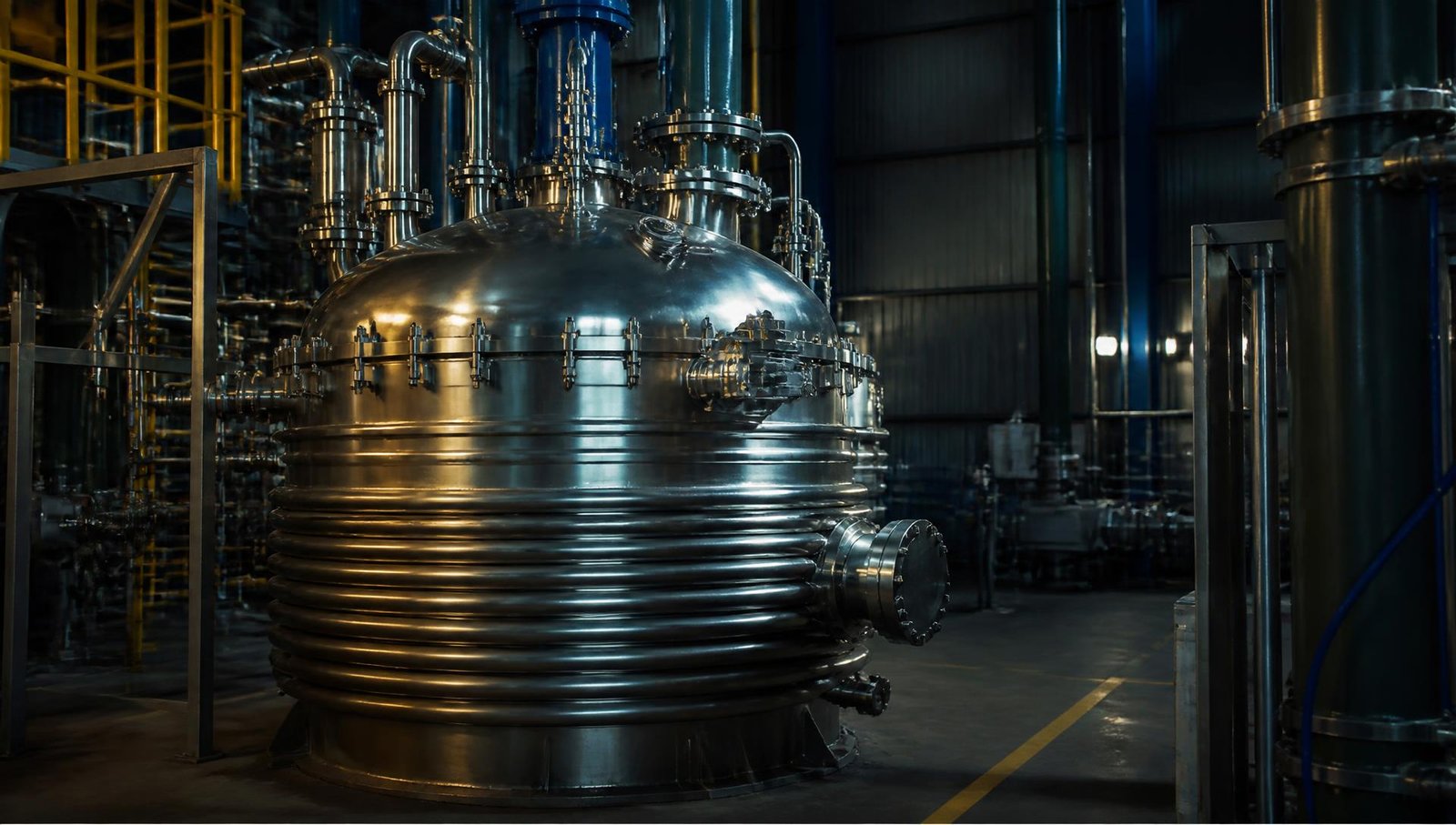

Limpet Coil Reactor
Limpet coil configurations provide an external coil arrangement around the vessel for heating or cooling according to the required process conditions.
Suitable Heating / Cooling Media
- Steam
- Thermic Fluid
- Chilled Water
Final jacket or limpet coil configuration is determined based on application and engineering requirements.
Performance
Performance Features
Process-Specific Configuration
Configured around the required volume, operating pressure, and temperature range.
SS 304 / SS 316 Construction
Available in stainless steel 304 and stainless steel 316 construction.
Jacketed & Limpet Coil Options
Jacketed and limpet coil configurations available according to process requirements.
Multiple Agitator Designs
Anchor, turbine, and paddle agitator options available.
Flexible Heating & Cooling
Compatible with steam, thermic fluid, or chilled water as heating/cooling media.
Precision Welding & Internal Finish
Precision welding and polished internal finish for hygienic and process-grade applications.
Hydrotesting Before Dispatch
Each reactor undergoes hydrotesting ahead of dispatch.
Agitation
Agitator Options
Anchor Agitator
Anchor-type agitator configuration for suitable process mixing applications.
Turbine Agitator
Turbine-type agitator configuration for suitable process mixing requirements.
Paddle Agitator
Paddle-type agitator configuration for suitable process applications.
Agitator selection is finalized based on application and engineering requirements.
Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Reactor Type | Jacketed / Limpet Coil |
| Capacity Range | 1–100 m³ |
| Design Pressure Range | Up to 10 bar(g), subject to design |
| Design Temperature Range | Up to 250°C, subject to design |
| Material of Construction | SS304 / SS316 / Carbon Steel, as applicable |
| Agitator Type | Anchor / Turbine / Paddle |
| Heating/Cooling Medium | Steam / Thermic Fluid / Cooling Water / Chilled Water |
| Internal Finish | As per Process Requirement |
| Testing | Hydrostatic Testing as per Applicable Code |
Configuration finalized based on application and engineering requirements.
Require a Reactor for Your Process?
Let us know your capacity, temperature range, and process type, and we will design the right reactor for you.
